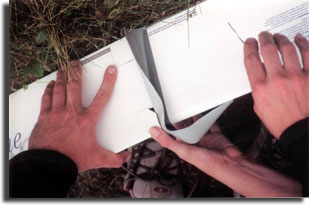

As you're securing the tubes into 6-foot and 9-foot
sections, be sure to make them as sturdy as possible at the joints.
Trust me on this one.
|
|  Nice
work. Keep it up fellas.
|
|
Now the assembly begins. With the assistance of lots of duct tape,
configure the 6-foot arms around the vertical 9-foot tower and secure
to roof rack. If possible, at the joint where the smaller arms support
the vertical column, allow some up-and-down movement so the structure
can wave with the wind. We don't want to be too rigid, after all,
we're here to have fun.
|
|

|
|
 Notice
from the top view, the perfect interface each supporting arm makes
with the column, using the triangular shape of the FedEx tube.
|
|
 This
is a good time to notice that, for this prototype, we did not follow
the exact instructions outlined in the blueprints. Where Rob calls
for three 6-foot sections, we used only 3-foot sections. (We ran
out; incidently FedEx tubes do a great job of holding up a tarp
in the conventional sense. Which is why I would bring extras!)
You'll see for yourself what this construction flaw
did to the final installation. (Continued on page 4, below.)
|
-Rob Hansen
